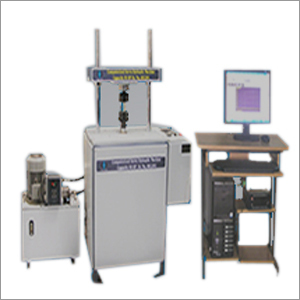

Computerized Universal Testing Machine

Computerized Universal Testing Machine
Computerized Universal Testing Machine
Product Code : 06
Brand Name : KALPAK INSTRUMENTS & CONTROLS
Trade Information
  • Payment Terms
  • Cheque, Others
  • Packaging Details
  • Standard
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
Product Description

We offer distinct and advanced Computerized Universal Testing Machine. The machine is used as the main structural part of various industrial units. We craft the machine as per the need of the clients. The use of advanced equipments, engineering methods and best quality material makes the machine a piece of design. The machine is configured with computer for accurate, quick and reliable results. The Computerized Universal Testing Machine is available at a very reasonable price.

Main Features:



  • High quality designing for universal use
  • Precise and sturdy structure
  • Durable and consistent performance





Servo Hydraulic Computerised Universal Testing Machine

Model KIC-XX-SH Maximum capacity 250 KN

Dynamic test System for Materials & Components Testing up to 250 KN

The Kalpak Computerized Servo Hydraulic Universal testing Machine offers ideal solution for dynamic testing of materials and components over a range upto 50 Hz The system is free standing type hence does not require a special foundation. The system consists of a sturdy load frame, with integrally mounted actuator and servo valves, a hydraulic power unit. Test control subsystem Controller, PC and Kalpak windows based software UTM-TEST-SH for Machine control and data acquisition and analysis.

Advantages

  • Flexible configuration to meet your specific needs
  • Advanced state of the art analogue controller
  • Wide range of material-specific test application software
  • Dynamic testing capability - up to 20 Hz
  • Large selection of test accessories, including grips and environmental chambers
  • Fatigue rated
  • Height Adjustable Platen to suit test requirement

A variety of optional customized application software packages to suit test requirements

Wide range of load frame force capacities, servo valves, servo cylinders and pump selection are offered to provide feature rich economic solutions. Also offered selection of grips, fixtures, extensometry, load cells, and environmental chambers to fine-tune the system to meet your particular requirements.

Specifications

Load Frame

Free Standing complete with Hydraulic Power pack, Servo Valve, Servo Cylinder, Two pillar construction with bottom plate mounting of actuator, Load Cell mounted on the upper Platen, Moving platen coupled to the servo actuator piston

Load Capacity

available in 5 KN/10 KN/25KN/50 KN/100 KN / 250 KN

Dynamic rating

210 Bar supply allowing Dp 70 Bar across the servo valve

Actuator Stroke

50mm/100 mm/150mm/200mm/250mm

Load Cell

Suitable range  Fatigue type

Load Resolution

At least 1 in 10000 parts

Load Accuracy

+/- 0.5% of Reading.

Length Sensor

Linear sensor for actuator travel.

Length Resolution

0.01 mm

Length Accuracy

+/- 0.05 mm

Servo Valve

As per requirement

Actuator

Hydraulic with Servo valve and Servo Cylinder  Double Acting Type

Controller

Kalpak make proprietory

Hydraulic Power Pack

Capacity Options: 8,20,35, 50, 75,90 Liters per minute

Fixed/ Variable delivery options

Submerged pump for quiet and noiseless operation

PLC controlled

Visual Indication for Filter Block, Low oil Level, High Oil Level, High Oil temperature, Pump Start, Pump Stop and Emergency Stop Button,.

Off line cooling and filteration system .

Maximum Daylight

600 mm From top of bottom plate to bottom of platen

Column Spacing

Max. upto 500 mm

column length

1000 mm (Different column lengths available on request.)

Operating/Test Modes.

Tensile/ Compression static as well as fatigue

Safety Features

Emergency Stop, Pump Start and Pump Stop Buttons,  Over Travel Protection by full length adjustable Limit Switches, Electronic  Over Load protection max. upto 100% of capacity, High Oil temperature & Low Oil Level indication for alarm annunciation, Filter Block Indication,  Motor overload safety

Software for  Analysis & Control

Kalpak UTM Servo TEST-C is a Windows based software for Control of Computerised Servo Hydraulic UTM, On line Data Acquisition to PC as well as Data Analysis. It offers User friendly features such as:

  • Real time display of Test data, Test Curves
  • Data analysis:
  • Software Pass word protection
  • Easy Test Data saving as EXCEL/ACCESS files to retrieve and view stored past data like Product, Test, Batch details and test data. User can feed / Program parameters like Date, User Name, Material Details and Specifications, Sample Size, Units of measurement ,Test Selection, Parameter, Batch No., etc.
  • Easily accessible file system to retrieve and view stored past data like Product, Test, Batch details and test data.
